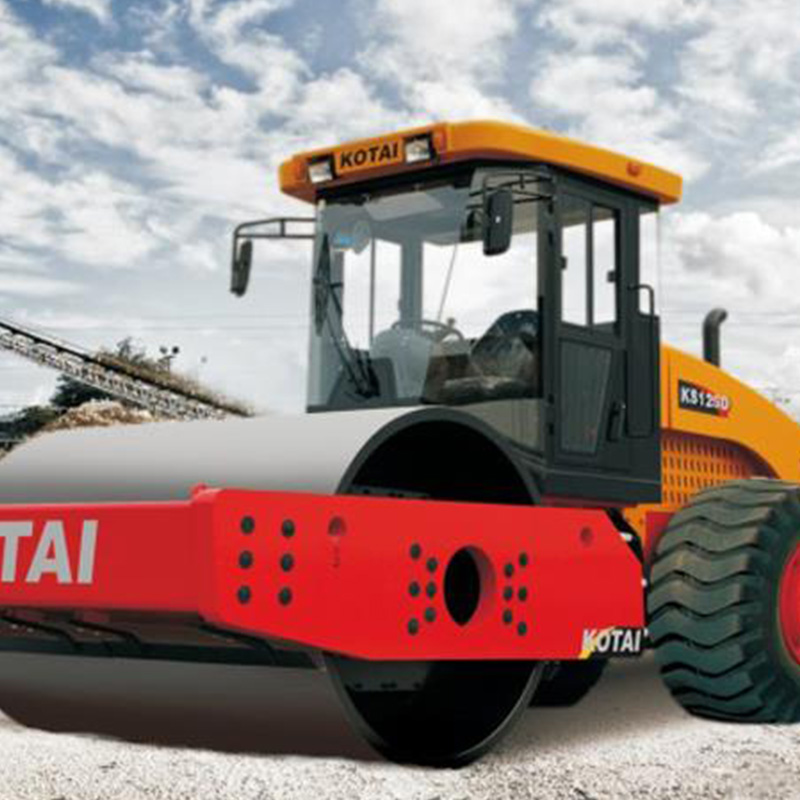

Product Description
Product Key Features
Engine:
l Equipped with a Weichai WP6G140 fuel direct-injection turbocharged engine (105 kW).
l Features rapid startup, durability, and fuel efficiency.
Hydraulic Drive System:
l Internationally renowned closed hydraulic travel system with dual-drive technology.
l Uses a domestic high-quality drive axle and variable displacement motor for adaptable speed and traction in diverse conditions.
Vibration System:
l Electro-hydraulic controlled closed-loop hydraulic vibration system with dual-frequency and dual-amplitude capabilities.
l Composed of a variable displacement pump and fixed displacement motor.
Vibration Drum Design:
l Reinforced internal baffle structure for enhanced rigidity.
l Four-point shock-resistant vibration bearings optimized for load distribution.
l Lubrication and heat dissipation channels in bearing seats ensure reliability under heavy alternating loads.
Safety & Ergonomics:
l Interlock-controlled brake system for fail-safe operation.
l Single-lever control reduces operator fatigue.
l Large-angle openable engine hood for easy maintenance access.
Comfort Features:
l Air-conditioned cabin for operator comfort.
l Optional fuel heater for cold-environment startups.
Advanced Options:
l Optional compaction meter for real-time density monitoring in the cabin.
l Container-friendly design reduces transportation costs.
Tires:
l Small-pattern tires for superior ground grip.
Main technical parameters
|
|
unit
|
KS125D
|
|
Operating mass
|
kg
|
12000
|
|
Static linear load
|
N/cm
|
322
|
|
Amplitude
|
mm
|
1.85/0.83
|
|
Vibrating frequency
|
Hz
|
30/34
|
|
Centrifugal force
|
kN
|
280/162
|
|
Drum width
|
mm
|
2130
|
|
Drum diameter
|
mm
|
1533
|
|
Speed range
|
km/h
|
0-9
|
|
Grade ability
|
%
|
45
|
|
Turing radius
|
mm
|
6500
|
|
Min.ground clearance
|
mm
|
440
|
|
Steering angle
|
|
32
|
|
Swing angle
|
|
12
|
|
Engine brand
|
-
|
WEICHAI
|
|
Engine power
|
kW
|
105
|
|
Fuel tank
|
L
|
235
|
|
Hydraulic oil tank
|
L
|
145
|
|
Overall Length
|
mm
|
5970
|
|
Overall Width
|
mm
|
2290
|
|
Overall Height
|
mm
|
3150
|
