Main technical parameters
|
052840 Slope Finisher Main Technical Parameters
|
|
Model
|
052840
|
|
Lengthmm
|
1530
|
|
Width (mm)
|
2000
|
|
Height (mm)
|
1400
|
|
Theoretical Weightkg
|
875
|
|
Working Width (mm)
|
1000
|
|
Horizontal Deflection Angle ()
|
30
|
|
Horizontal Lateral Shift (mm)
|
1320
|
|
Max. Finishing Radius (mm)
|
4600
|
|
Max. Pressure (Mpa)
|
21
|
|
Working Speed km/h
|
<6
|
|
Working Flow RateL/Min
|
75-100
|
|
Operating VoltageV
|
DC12/24
|
|
Compatible Carriers
|
Vehicles / High-power Skid Steers
|
Product Key Features
1. Solid Tire Configuration: Equipped with solid tires, the sweeper ensures smooth operation and excellent maneuverability during transit.Wide Applications: Suitable for slope vegetation trimming in riverbanks, highways, municipal gardens, and urban greenbelts.
2. Dual-Arm Multi-Hinge Design: Flexible control to cross barriers and perform long-distance trimming.
3. Replaceable Flail System: 1-meter trimming width with interchangeable components.
4. Lateral Shift Function: Adapts to diverse working conditions for extended coverage.
5. Electro-Proportional Load-Sensing System: Ensures precise control, reliability, and operational safety.
6. 30 Horizontal Deflection: Enhances adaptability to complex terrains.
7. Extended Reach: Up to 4.6-meter working radius for efficient slope finishing.
8. Compact Transport Mode: Arms and bucket fold into a compact configuration for safe transportation.
9. Spiral Adjustment Mechanism: Allows angle customization for varied tasks.
10. Height-Adjustable Roller: Real-time control over vegetation trimming height.
11. Durable Axial Piston Motor: Compact design with high pressure resistance for extended service life.
12. Taper-Lock Pulley System: Easy maintenance, vibration damping, and low-noise operation.
13. Shock Absorption & Floating Function: Protects components from impact damage.
Optional Attachments
|
Model
|
052660
|
053060
|
053160
|
053206
|
|
Name
|
Disc Tree Trimmer
|

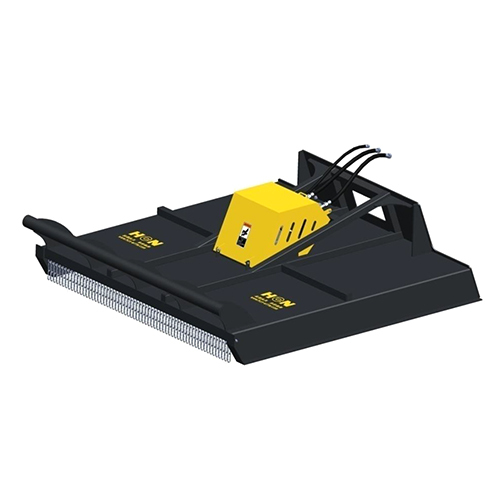

Flail Mower
|
Dual-Blade Hedge Trimmer
|
Hydraulic Branch Shear
|
|
|
|
|
|
|
|
Lengthmm
|
990
|
1161
|
660
|
1200
|
|
Width (mm)
|
1570
|
1594
|
1535
|
325
|
|
Height (mm)
|
465
|
480
|
332
|
317
|
|
Working Width (mm)
|
1500
|
1500
|
1500
|
\
|
|
Theoretical Weightkg
|
170
|
180
|
88
|
40
|
|
Blade/Cutter Specs
|
500
|
\
|
\
|
\
|
|
Max. Cutting Diameter
|
125
|
20
|
20
|
150
|
|
Flow Rate (L/min)
|
60-70
|
60-70
|
60-70
|
\
|
|
Max. Pressure (MPa)
|
20
|
20
|
20
|
20
|
|
Compatible Carriers
|
Mechanical arms (vehicles/skid steers)
|
