Product Description
Product Key Features
n High Efficiency
Powered by advanced engineering, our product completes root ball excavation in dozens of seconds. Achieve operational excellence with:
Selective harvesting: 150 trees/day
Full-site clearance: 400 trees/day
Workforce efficiency: Equivalent to 30-100 manual workers
n Apple-Shaped Root Ball Technology
Engineered to create optimally compacted "apple-form" root balls that:
Preserve 30%+ more root systems
Boost transplant survival rates to 95%+
n Survival-Optimized Cutting System
Proprietary electro-mechanical-hydraulic integrated system delivers:
Surgical-grade root sectioning (sub-0.5mm tolerance)
Compression-resistant soil structure maintenance
Smooth cutting surfaces for accelerated root regeneration
n Spade Made of Ultra-wear-resistant Alloy Steel
The max. bending angle can reach up to 140
Capable of withstanding more than 100,000 fatigue resistance tests
Shape-memory metallurgy for zero deformation
|

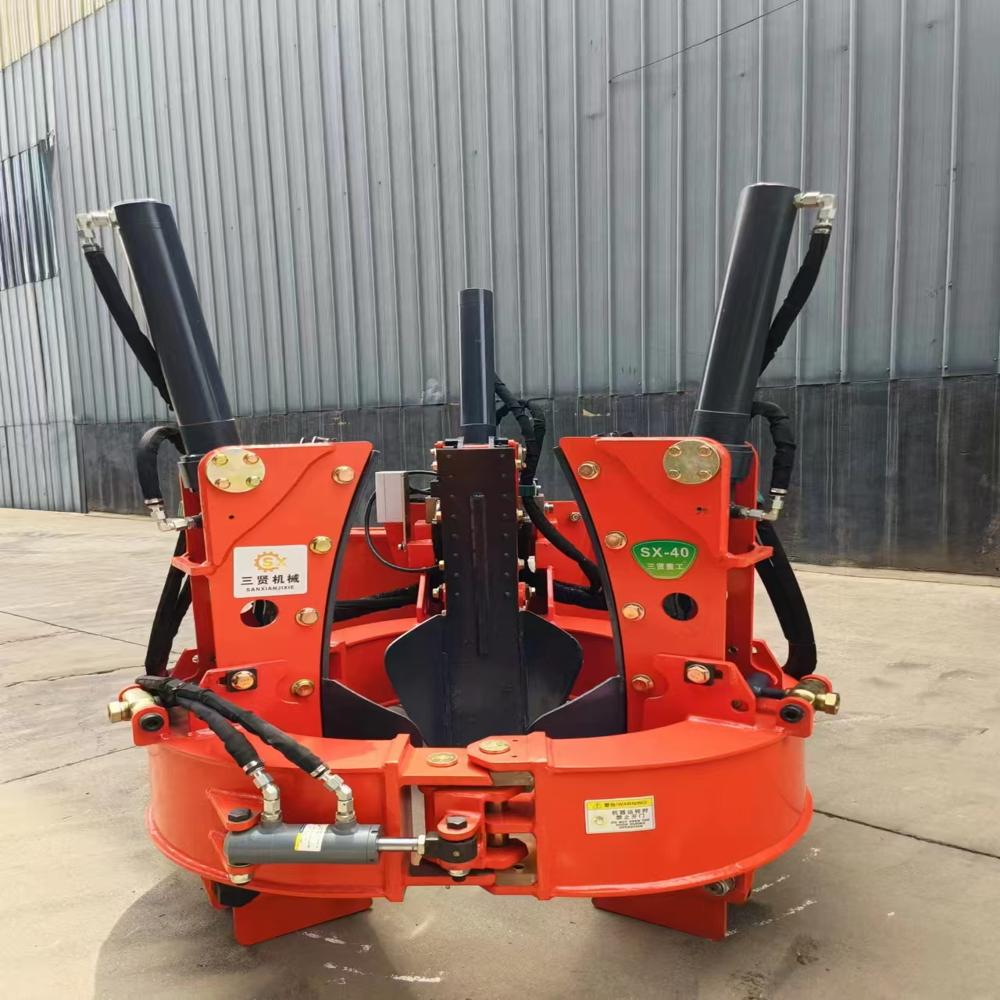

SX-80/SX-100 Series Tree Spade
|
|
Parameter
|
SX-80
|
SX-100
|
|
Dimension(mm)
|
145012501600
|
150013001700
|
|
Dead weight(kg)
|
920
|
1150
|
|
No. of cylinder(pcs)
|
4
|
4
|
|
No. of spade(pcs)
|
4
|
4
|
|
Diameter of upper root-ball(mm)
|
850
|
1050
|
|
Diameter of lower root-ball(mm)
|
400
|
500
|
|
Max. diameter of root-ball(mm)
|
850
|
1050
|
|
Min. diameter of root-ball(mm)
|
700
|
900
|
|
Height of root-ball(mm)
|
550
|
600
|
|
Volume of root-ball(m)
|
0.24
|
0.32
|
|
Working height(mm)
|
1600
|
1700
|
|
Diameter of tree(cm)
|
8-15
|
12-20
|
|
Working efficiency( PCS/hr)
|
75
|
55
|
|
Material of spade
|
Alloy steel
|
|
Shape of root-ball
|
Apple shape with flat bottom
|
|
Structure
|
Four disc type spade, equiped with cylinder locking
|
|
Function
|
Dig, transplant and package trees
|
|
Package dimension(mm)
|
130012001900
|
140013502000
|
|
Weight with package(kg)
|
1050
|
1230
|
