HD 60 Trench Box

Price 5000.0 USD ($)/ Set

Get a Price/Quote

MOQ : 5 Sets

HD 60 Trench Box Specification

Product Type
Trench Box

General Use
Construction

Computerized
No

Automatic
No

Control System
Manual

Feature
Heavy Duty

HD 60 Trench Box Trade Information

Minimum Order Quantity
5 Sets

FOB Port
Shanghai

Payment Terms
Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
50 Sets Per Month

Delivery Time
15 Days

Sample Available
No

Packaging Details
Bulk

Main Export Market(s)
Asia, Australia, North America, South America, Middle East

Main Domestic Market
All India

About HD 60 Trench Box

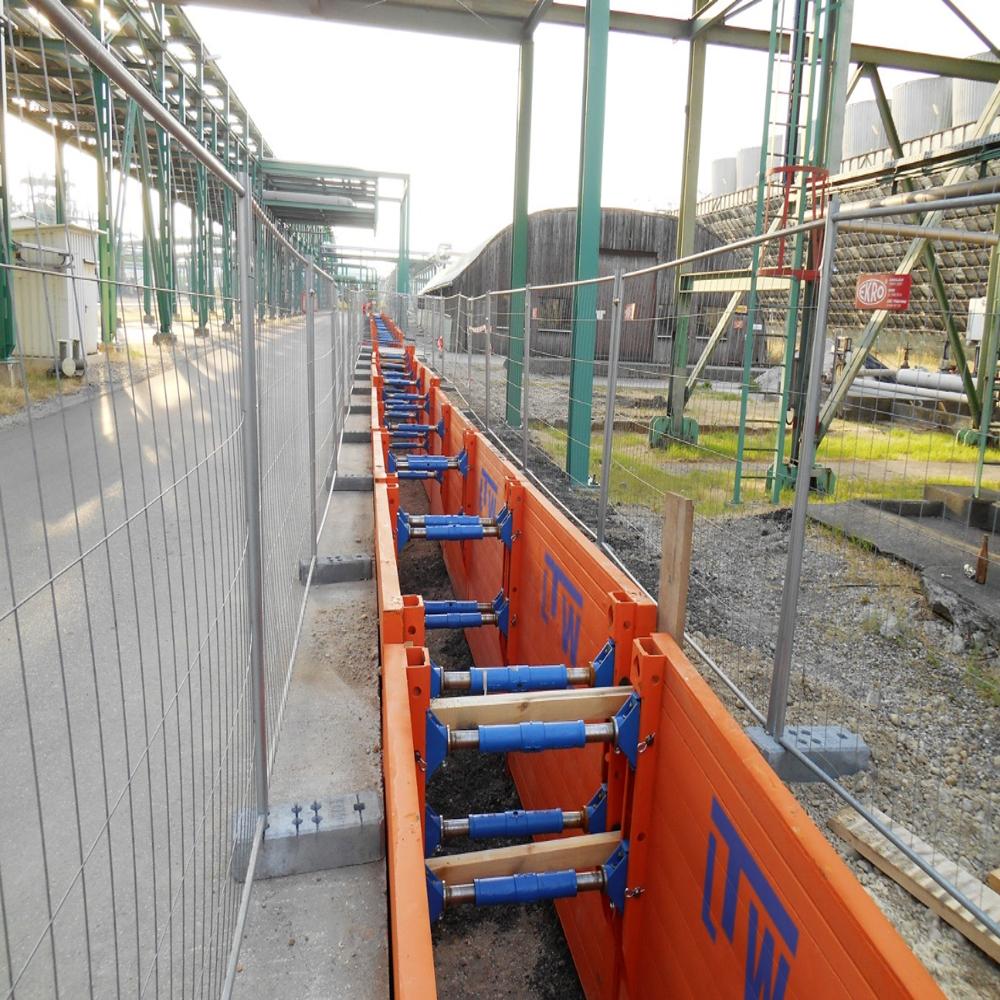

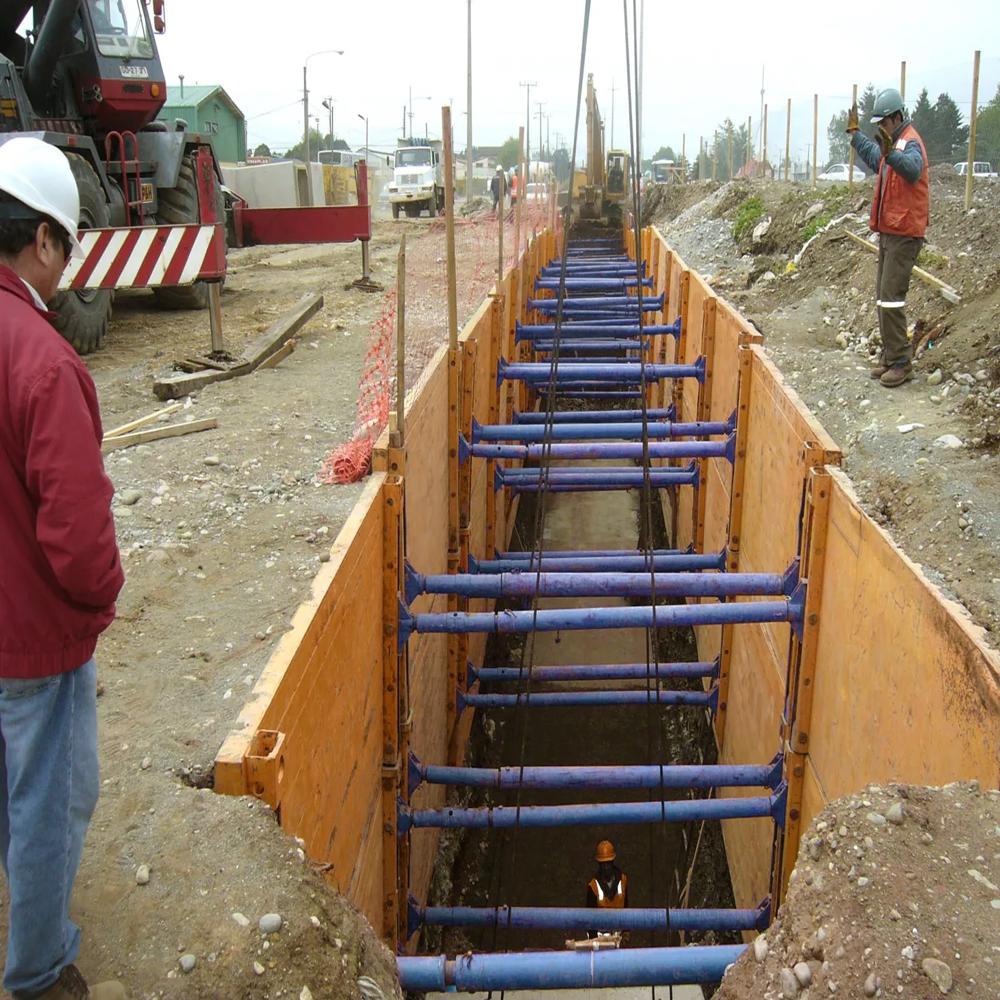

The HD 60 trench Box System is an ideal shoring for small to medium-sized inner-city sewer construction projects, protecting workers and preventing trench collapses.

These kinds of trench boxes can be easily handled by small sized construction machinery. Low weight and high Standard of Safety are the key features of the HD 60 trench Box System.

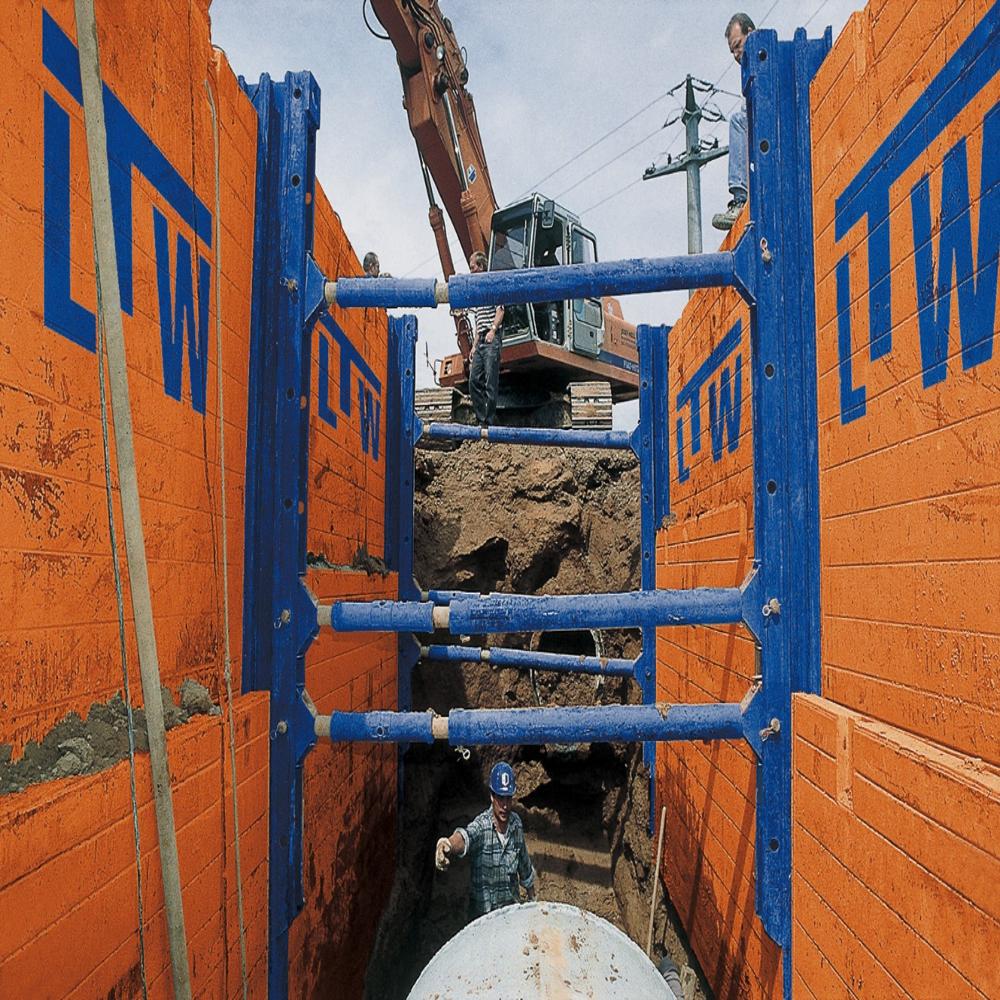

Greater trench depths and widths can be achieved due to the combination of the lightweight panel and our rugged standard strut design. The struts are bolted to articulated spring mushroom fittings, which are connected to the plates. Due to the rugged standard strut, the system can also be installed in poor or unstable soil conditions. The Shoring Box is pushed vertically into the ground by alternately pushing and lowering (Dig and Push method).

The HD 60 Trench Box can be installed to a depth of up to 4.0 m using one base and one top box. The height of the base box is 2.4 m and the top boxes are either 1.32 or 1.56 m high. The max. pipe clearance is 1.35 m. Base and extension boxes are connected by box connectors. Handling and installation is without difficulties.

Strut extensions are available from 0.3 m to 2.5 m lengths. A trench width from 1.11 m to 3.91 m is possible using the standard strut and the strut extensions. The standard strut has a stroke of 0.3 m; the trench width can be flexible adjusted to the individual job site requirements.

These struts are used in a variety of our Systems enabling a high level of flexibility and compatibility.

BASE BOXES

Plate length L [ m ]	Plate height H [ m ]	Plate thickness t Pl [ mm ]	Pipe culvert length LC [ m ]	Pipe culvert height hC [ m ]	Limit state design load e d [ kN / m ]	Plate weight G PL [ kg ]	Box weight G E [ kg ]
2.00	2.40	60	1.60	1.35	66.2	415	1120
2.50	2.40	60	2.10	1.35	49.8	475	1240
3.00	2.40	60	2.60	1.35	33.0	535	1365
3.50	2.40	60	3.03	1.35	32.9	715	1720

TOP BOXES

Plate length L [ m ]	Plate height H [ m ]	Plate thickness tPl [ mm ]	Pipe culvert length LC [ m ]	Pipe culvert height hC [ m ]	Limit state design load e d [ kN / m ]	Plate weight G PL [ kg ]	Box weight G E [ kg ]
2.00	1.30	60	1.60		66.2	235	610
						270	690
2.50	1.30	60	2.10		49.8	270	680
						315	770
3.00	1.30	60	2.60		33.0	305	750
						355	850
3.50	1.30	60	3.00		32.9	410	960
						475	1100

STANDARD STRUT

Brace Extension [ m ]	Working Width bC [ m ]			Shoring Width b [ m ]			Weight G [ kg ]
without	0.99	-	1.29	1.11	-	1.41	71.0
0.50	1.49	-	1.79	1.61	-	1.91	20.0
0.80	1.79	-	2.09	1.91	-	2.21	26.7
1.00	1.99	-	2.29	2.11	-	2.41	31.1
1.50	2.49	-	2.79	2.61	-	2.91	42.3
2.00	2.99	-	3.29	3.11	-	3.41	53.4
